IC02-125kW-232kWh-Liquid-Cooled-AIO

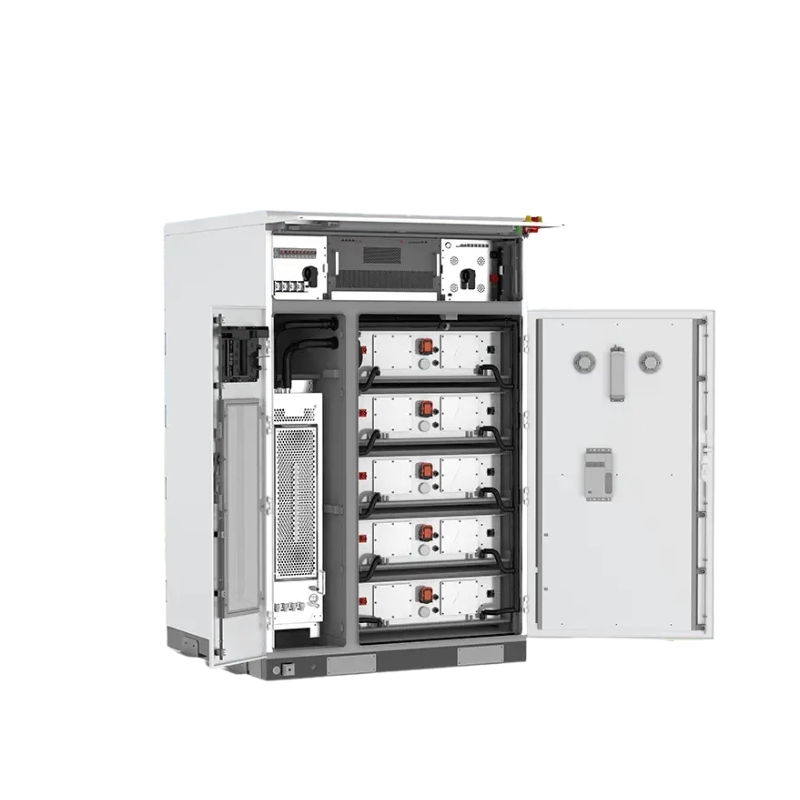

All-in-One 125kW / 232kWh Liquid-Cooled Commercial & Industrial Energy Storage System
Introducing our all-in-one 125kW / 232kWh Liquid-Cooled Energy Storage System — engineered for the performance, reliability, and safety requirements of modern commercial and industrial power applications.
This integrated cabinet combines high-capacity 280Ah LiFePO₄ battery modules with an advanced liquid-cooling architecture, ensuring stable operation and extended cycle life under high-load or high-temperature conditions.
A compact residential energy storage solution with 10.24 kWh capacity. Built with safe and durable LiFePO₄ cells, it supports up to 16 units in parallel (162 kWh) for future expansion. Key features include Wi-Fi smart monitoring, IP50 protection for indoor/outdoor use, 6500+ cycles, and a 10-year warranty. Ideal for home solar + storage systems.
The system supports parallel expansion up to 10 units (maximum 2.32MWh), making it suitable for energy-intensive scenarios such as manufacturing facilities, commercial complexes, microgrids, agricultural operations, and EV charging infrastructure.
System Features
System Parameters
| Model No |
IC02-125-232K
|
| Battery Side | |
| BatteryType | LFP280Ah |
| Cells series & parallel |
260S1P(5*52S1P)
|
| Battery Rated Voltage | 832V |
| Voltage Range | 650~950V |
|
Battery Rated Energy
|
261.2kWh |
|
Cooling Method
|
Liquid Cooling |
| AC Side | |
| Rated Output Power |
125KW
|
| Output Power Current |
180A
|
| Rated Grid Voltage |
AC480V
|
| AC Access method |
3P 3W+PE or 3P 3W+N+PE
|
| Grid Frequency Range |
50Hz/60Hz
|
| THDi | ≤ 3%( Full load ) |
| Power Factor | -1 leading to +1 lagging |
| System Parameter | |
| Maximum PCS Converter Effciency | 89% |
| Configuration | MPPT (Optional)、STS(Optional)、PCS |
| Charge/Discharge Rate | ≤0.5P (140A) |
| Cooling Method | Liquid Cooling |
| Operating Temperature | -20~ + 55℃ |
| Relative Humidity | 0%-95% (no condensation) |
| Altitude | 3000m (>3000m reduction) |
| lsolation mode | Industrial Transformer lsolation |
| IP Level | IP54 |
| Cycle Numbers | 10000@25℃0.5C/0.5C,90%DOD，80%EOL |
| Communication Interface | CAN/Ethernet/485 |
| Dis play | LCD |
| Noise | <78dB (1m away from the horizontal position of the device) |
This product is engineered for factories, commercial buildings, logistics centers, agriculture facilities, data-edge sites, and distributed energy projects seeking a reliable, long-life, high-energy-density storage solution.
NOVEVERGY INSIDE, POWER YOUR LIFE
Key Features
Long Life & Safety: >6500 cycles at 80% DoD with LiFePO₄ technology.
Broad Compatibility: Works with most hybrid inverters.
Modular Expansion: Up to 16 units in parallel for a total of 163 kWh.
Smart Management: Each battery features an independent BMS for safe, efficient performance.
Flexible application
Easy to install
Real-Time Monitoring
Battery Specifications
| Model | |
|---|---|
| Model No | GSL-051200A-B-GBP2 |
| Nominal Parameters | |
| Battery Chemistry | LiFePO₄ |
| Voltage | 51.2 V |
| Operating Voltage | 46–56 V |
| Capacity | 200 Ah |
| Energy | 10.24 kWh |
| Usable Energy | 9.22 kWh |
| Scalability | Max. 16 pcs in parallel (162 kWh) |
| Charge/Discharge Current | Recommend 100 A; Max 150 A; Peak 200 A (2 min @ 25 °C) |
| Basic Parameters | |
| Recommend Depth of Discharge | 80% |
| Dimension (W×H×D) | 800 × 550 × 200 mm / 31.5 × 21.6 × 7.8 in |
| Weight | 84.5 kg / 186 lb |
| Master LED Indicator | 4 LED (SOC 25%–100%); 2 LED (working / alarm / protection) |
| IP Rating of Enclosure | IP50 |
| Working Temperature | Charge 0–55 °C; Discharge −20–55 °C |
| Storage Temperature | 0–35 °C |
| Humidity | 5%–95% RH (non-condensing) |
| Altitude | ≤ 2000 m |
| Cycle Life (25 ± 2 °C, 0.5C/0.5C, 80% EOL) | ≥ 6500 |
| Installation | Wall-mounted |
| Communication Port | CAN 2.0, RS485 |
| Warranty Period | 10 years |
| Certification | CB-IEC 62619, CE-EMC, CEI 0-21, UN38.3, MSDS |
