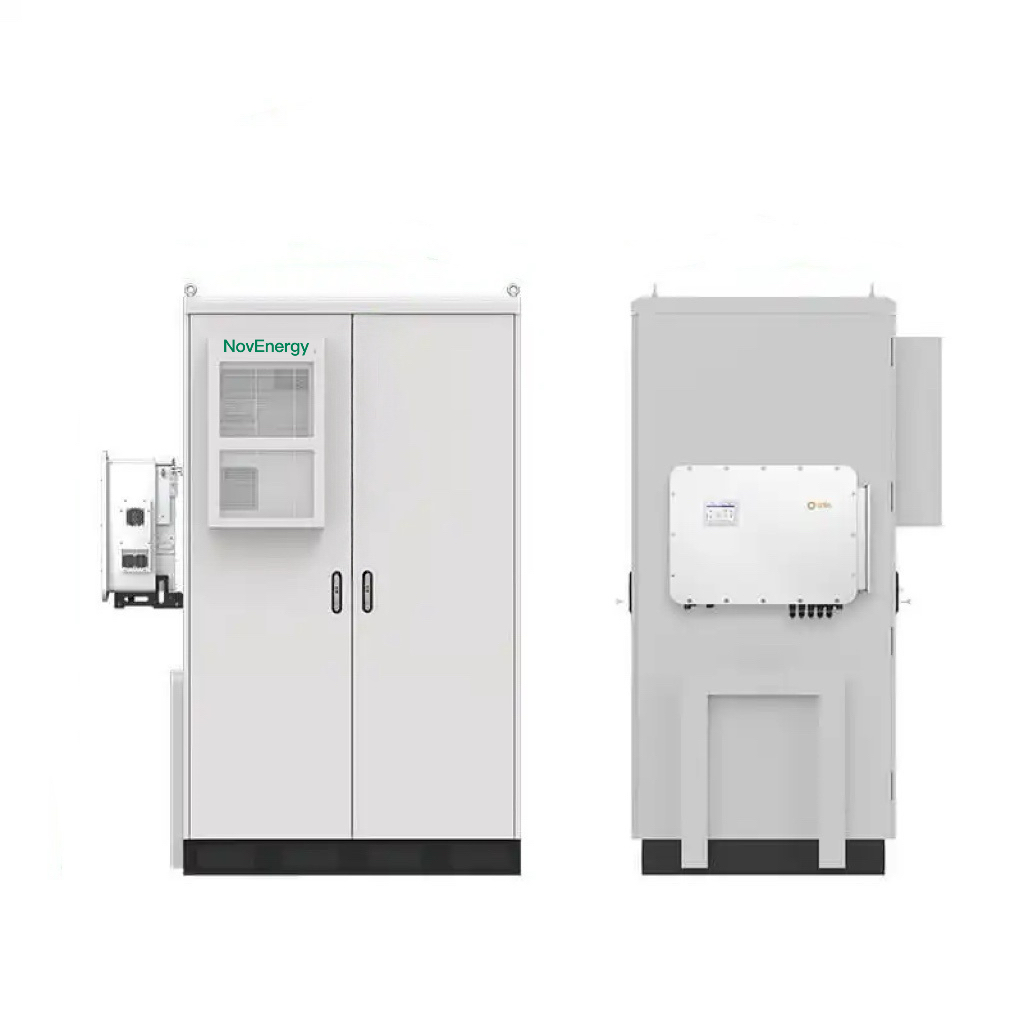

IC03-125kVA / 215kWh HV- Air-Cooled BESS

125kW / 215kWh High-Voltage Air-Cooled C&I Energy Storage System

Cost-Effective Air-Cooled ESS for Small & Mid-Scale Commercial Projects

This 125kW / 215kWh high-voltage air-cooled energy storage system is designed for small and medium commercial & industrial applications where fast delivery, stable performance, and competitive pricing are key decision factors.

Built on a modular high-voltage LFP battery architecture, the system supports flexible deployment and parallel expansion, making it suitable for peak shaving, backup power, and hybrid solar-storage projects. Air-cooling simplifies system structure and maintenance, offering a practical solution for projects with controlled environments and budget sensitivity.

A compact residential energy storage solution with 10.24 kWh capacity. Built with safe and durable LiFePO₄ cells, it supports up to 16 units in parallel (162 kWh) for future expansion. Key features include Wi-Fi smart monitoring, IP50 protection for indoor/outdoor use, 6500+ cycles, and a 10-year warranty. Ideal for home solar + storage systems.

Key Highlights

125kW power / 215kWh capacity – ideal balance for SME energy storage needs
High-voltage LFP battery architecture – stable, safe, and proven
Air-cooled design – lower system cost, simplified O&M
Fast grid-tied / off-grid switching – reliable backup capability
Scalable system design – supports parallel expansion for growing demand
Wide inverter compatibility – suitable for mainstream commercial inverters

Typical Applications

Small & medium factories
Commercial buildings and retail facilities
Agricultural and industrial parks
EV charging support systems
Solar + storage hybrid projects

Technical Specifications

Model: IC03-125kVA / 215kWh BESS

System Technical Specifications

Item	Specification
Nominal Energy	215.04 kWh
Nominal DC Voltage	768 V
Number of Battery Packs	15
Dimensions (W × D × H) (without inverter)	1300 × 1320 × 2380 mm
Weight (without inverter)	~2043 kg
Enclosure Rating	IP65
Cooling Method	Intelligent Air-Cooled Air Conditioner
Communication Port	Wi-Fi & LAN (hardware included)
Warranty	10 Years
Certification (Battery)	UN38.3, IEC62619, CEI 0-21, VDE-AR-N 4105, IEC 62109
Certification (Inverter)	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

Battery Module Specifications

Battery Model: Nov-51-280

Item	Specification
Battery Chemistry	LiFePO₄
Battery Energy (per module)	14.34 kWh
Nominal Voltage	51.2 V
Capacity	280 Ah
Max. Charge / Discharge Current	100 A
Operating Temperature	Charge: 0–55 °C / Discharge: −20–55 °C
Cycle Life	≥6500 cycles @25 °C, 0.5C/0.5C, 70% EOL

Inverter Specifications

Inverter Model: S6-EH3P(125)K10-NV-YD-H

Battery Side

Item	Specification
Battery Chemistry	Li-ion
Battery Voltage Range	300–950 V
Max. Charge / Discharge Current	200 A / 100 A + 100 A
Number of Battery Ports	2
Max. Current per Port	100 A
Communication	CAN / RS485

Input DC (PV Side)

Item	Specification
Recommended Max. PV Array Size	250 kW
Max. Usable PV Input Power	250 kW
Max. Input Voltage	1000 V
Rated Voltage	600 V
Start-up Voltage	180 V
MPPT Voltage Range	150–950 V
Max. Input Current	10 × 42 A
Max. Short-Circuit Current	10 × 60 A
MPPT / String Inputs	10 MPPT / 20 Strings

Output / Input AC (Grid Side)

Item	Specification
Rated Output Power	125 kW
Max. Apparent Output Power	125 kVA
Rated Grid Voltage	3/N/PE, 220/380 V, 230/400 V
Grid Frequency	50 Hz / 60 Hz
Rated Output Current	189.9 A / 180.4 A
Power Factor	>0.99 (0.8 leading – 0.8 lagging)
THDi	<3%
Max. Input Current	250 A

Output AC (Back-Up)

Item	Specification
Rated Output Power	125 kW
Overload Capability	1.2× 100 s / 1.4× 10 s / 1.6× 200 ms
Back-Up Switch Time	<10 ms
Rated Voltage	3/N/PE, 220/380 V, 230/400 V
Rated Frequency	50 Hz / 60 Hz
THDv (Linear Load)	<2%

Input AC (Generator)

Item	Specification
Max. Input Power	125 kW
Rated Input Current	189.9 A / 180.4 A
Rated Voltage	3/N/PE, 220/380 V, 230/400 V
Rated Frequency	50 Hz / 60 Hz

General Data

Item	Specification
Max. Allowable Phase Imbalance (Grid & Back-up)	100%
Max. Power per Phase	41.66 kW
Max. Parallel Units	Up to 10 units (>6 units requires Solis distribution cabinet)
Topology	Transformerless
Cooling Concept	Intelligent Fan-Cooling
Ingress Protection	IP65

NOVEVERGY INSIDE, POWER YOUR LIFE

Key Features

Long Life & Safety: >6500 cycles at 80% DoD with LiFePO₄ technology.
Broad Compatibility: Works with most hybrid inverters.
Modular Expansion: Up to 16 units in parallel for a total of 163 kWh.
Smart Management: Each battery features an independent BMS for safe, efficient performance.

Flexible application

Modular and cabinet installation

Easy to install

With a modular, lightweight, and plug-and-play design, the Atrix Basic only takes 1-2 people to install

Real-Time Monitoring

Homeowners can control and monitor their Atrix Basic via APP anytime and anywhere

Battery Specifications

Model
Model No	GSL-051200A-B-GBP2
Nominal Parameters
Battery Chemistry	LiFePO₄
Voltage	51.2 V
Operating Voltage	46–56 V
Capacity	200 Ah
Energy	10.24 kWh
Usable Energy	9.22 kWh
Scalability	Max. 16 pcs in parallel (162 kWh)
Charge/Discharge Current	Recommend 100 A; Max 150 A; Peak 200 A (2 min @ 25 °C)
Basic Parameters
Recommend Depth of Discharge	80%
Dimension (W×H×D)	800 × 550 × 200 mm / 31.5 × 21.6 × 7.8 in
Weight	84.5 kg / 186 lb
Master LED Indicator	4 LED (SOC 25%–100%); 2 LED (working / alarm / protection)
IP Rating of Enclosure	IP50
Working Temperature	Charge 0–55 °C; Discharge −20–55 °C
Storage Temperature	0–35 °C
Humidity	5%–95% RH (non-condensing)
Altitude	≤ 2000 m
Cycle Life (25 ± 2 °C, 0.5C/0.5C, 80% EOL)	≥ 6500
Installation	Wall-mounted
Communication Port	CAN 2.0, RS485
Warranty Period	10 years
Certification	CB-IEC 62619, CE-EMC, CEI 0-21, UN38.3, MSDS
